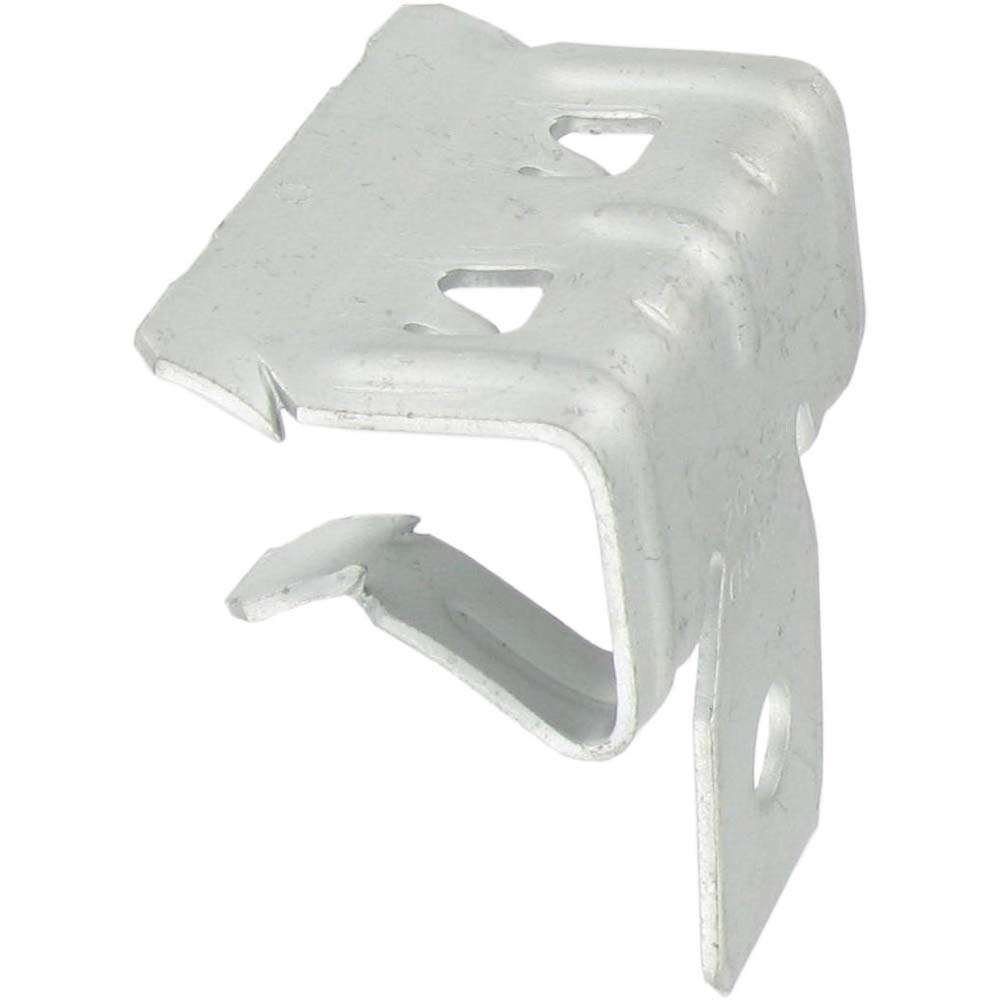

for a solid fixing to steel construction without the need for welding or drilling
with fixing hole (Ø 6.5 mm) to fix S-hook, bolt/nut, etc.
material: spring steel (type CS70)
surface treatment: Delta-Tone 9000 (480 hours)
| Code | For flange size | Fixing Hole | Height | Total Height | Total Width | Total Depth |
|---|---|---|---|---|---|---|
| fs | FH | h | H | W | DtT | |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| BC125 | 2-4 | 6.5 | 20 | 29 | 28 | 15 |
| BC250 | 4-8 | 6.5 | 21 | 35 | 32 | 22 |
| BC500 | 8-14 | 6.5 | 30 | 45 | 32 | 22 |
| BC750 | 14-20 | 6.5 | 32 | 46 | 38 | 22 |
| BC1000 | 20-28 | 6.5 | 47 | 56 | 38 | 22 |
