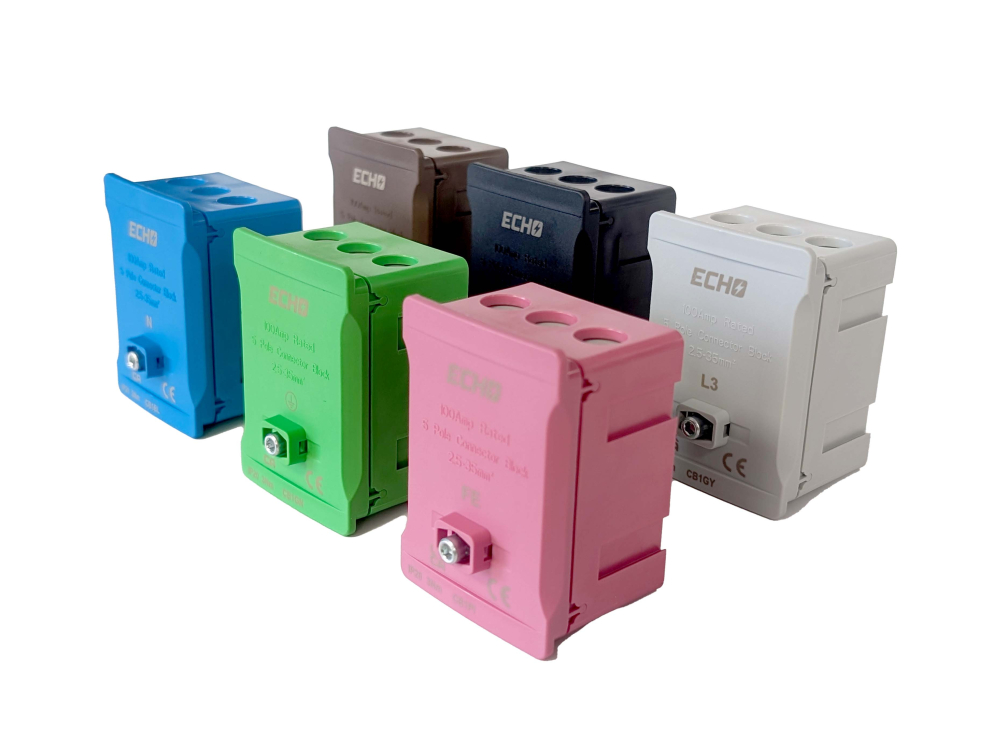

100A 5 Way Connector/Terminal Blocks

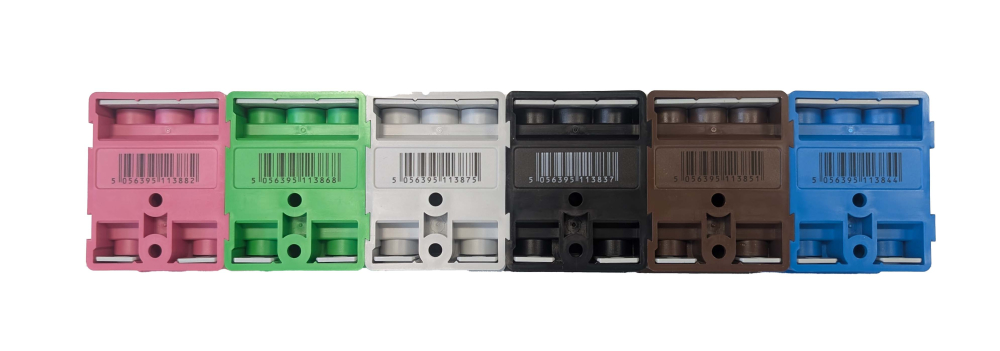

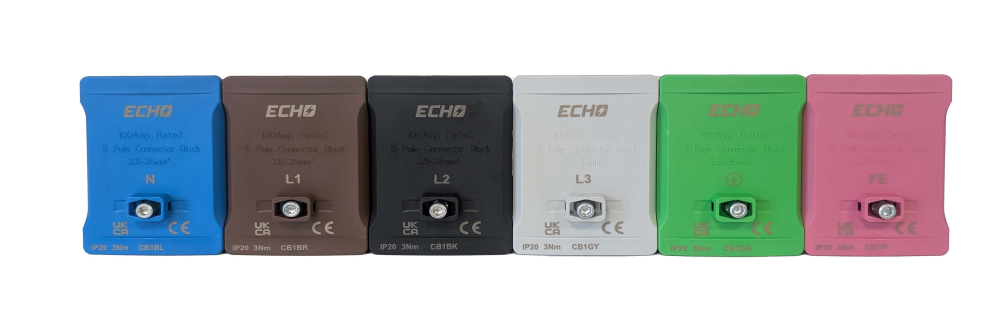

These distribution terminals are colour matched to Phase, Neutral, Earth and Functional Earth colours in accordance with IEC 60446 standards allowing the easy identification of connections
Blanking shutters are retained within the body of the connector ensuring unused entries are safely secured from contact
Cover is secured to body using a wire locking screw with 3mm hex (allen) key drive (HK3)
Wire lock screw enables installer to add a wire lock for complete security

IP20-rated ingress protection for added safety

Brown (L1): This colour identifies the live or "hot" wire, which carries the electricity from the power source to the appliance.
Blue (Neutral): The neutral wire completes the circuit, providing a return path for the current, and is typically blue in colour.
Green/Yellow (Earth): The earth wire is for safety, providing an alternative path for current in case of a fault, and is indentified by green and yellow stripes or a green wire with a yellow stripe.
Three-Phase systems: In three-phase systems, the live wires are brown (L1), black (L2) and grey (L3).

No detailed specifications are available for this product.
