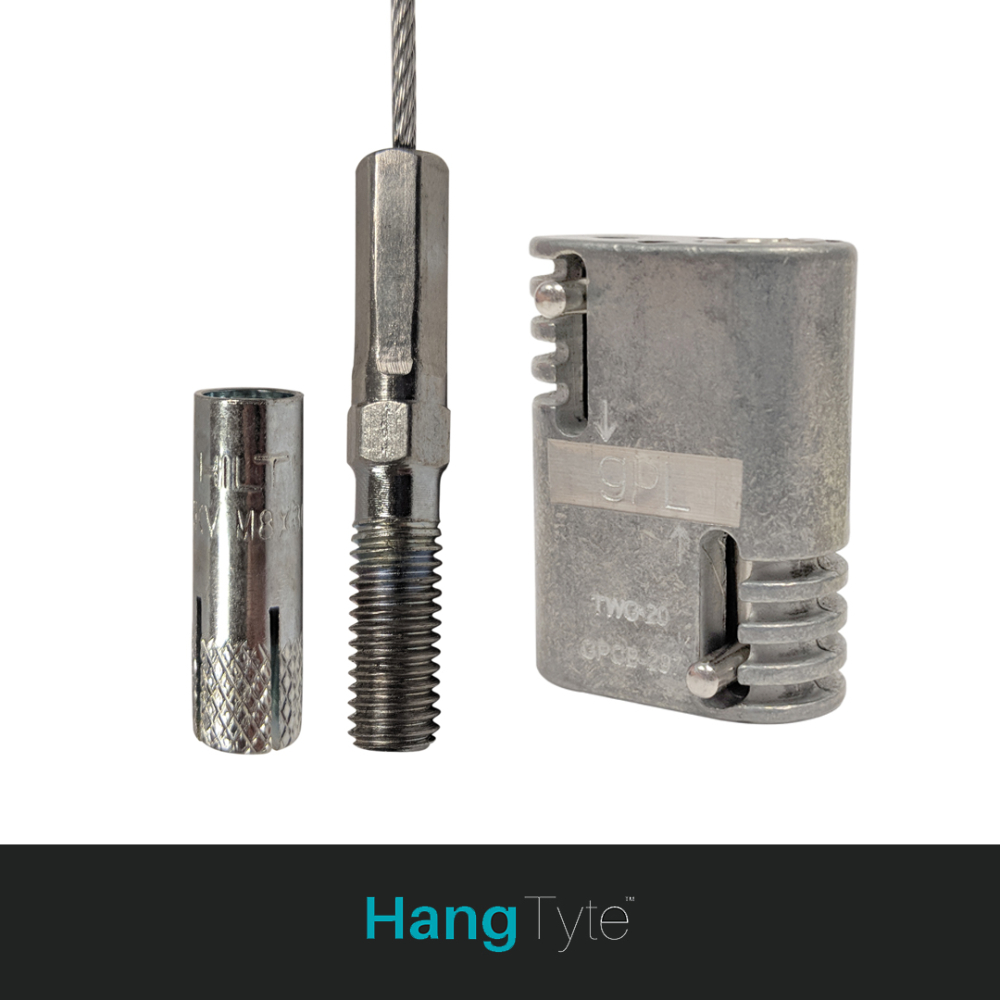

Wire Kits with Stud Termination and Gripper are designed for safe suspension of HVAC, electrical, and mechanical services in indoor and stationary settings. Suitable for concrete ceilings, metal decking, and pressed metal brackets (with nuts), each kit comes complete with a drop-in anchor for secure installation. Fully SMACNA compliant, tested to UL 1598 and CSA C22.2 No.250.0-08, and certified by TUV Nord, these kits meet stringent safety standards. Manufactured with MS-En1A white zinc studs and galvanized wire rope to IS and ASTM standards, they support a maximum load of 280kg with a safe working load (SWL) of 56kg at a 5:1 safety factor.
Function: Recommended for the suspension of HVAC, electrical and mechanical services. (For indoor & stationary setting).
Applications: Concrete ceilings, metal decking and pressed metal brackets (with nuts).
Technical Data:
• SMACNA compliance- all products carry a 5:1 safety factor
• Tested & Certified by TUV Nord.
• As per UL 1598, CSA C22.2 No.250.0-08
Material Specification:
Stud: MS-En1A White Zinc Wire Rope MS Galvanized IS228, (ASTM-D117) -2016, IS-6745-2011
Max Load: 280kg
SWL: 56Kg
Safety Factor 5:1
(Comes complete with drop-in anchor)
