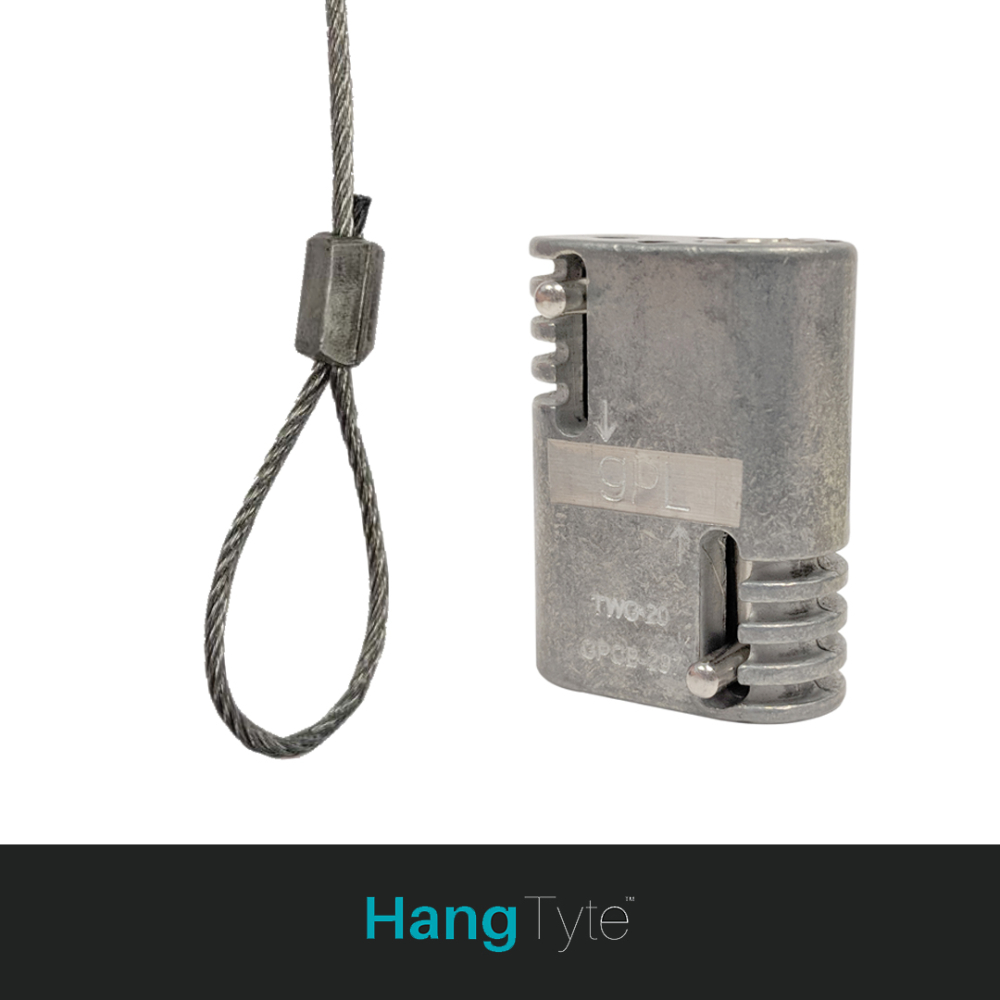

Wire Kits with Loop Termination & Gripper

Descriptions

Wire Kits with Loop and Gripper are engineered for the safe suspension of HVAC, electrical, and mechanical services. Designed for use with purlins, beams, roof trusses, and other accessible building structures, they ensure secure and efficient installation. Fully SMACNA compliant, tested to UL 1598 and CSA C22.2 No.250.0-08, and certified by TUV Nord, these kits guarantee reliability. Manufactured with MS-En8D ferrules (hexagonal crimped, white zinc finish) and galvanized wire rope to IS and ASTM standards, they offer a maximum load of 280kg and a safe working load (SWL) of 56kg with a 5:1 safety factor.

Function: Recommended for the suspension of HVAC, electrical and mechanical services.
Applications: Purlins, beams, roof trusses and other accessible building features.
Technical Data:
• SMACNA compliance- all products carry a 5:1 safety factor
• As per UL 1598, CSA C22.2 No.250.0-08
• Tested & Certified by TUV Nord.
Material Specification:
Ferrule: MS-En8D White Zinc (Hexagonal Crimped)
Wire rope: Ms Galvanised IS228, (ASTM-D117)- 2016, IS-6745-2011
Max Load: 280kg
SWL: 56Kg
Safety Factor 5:1
