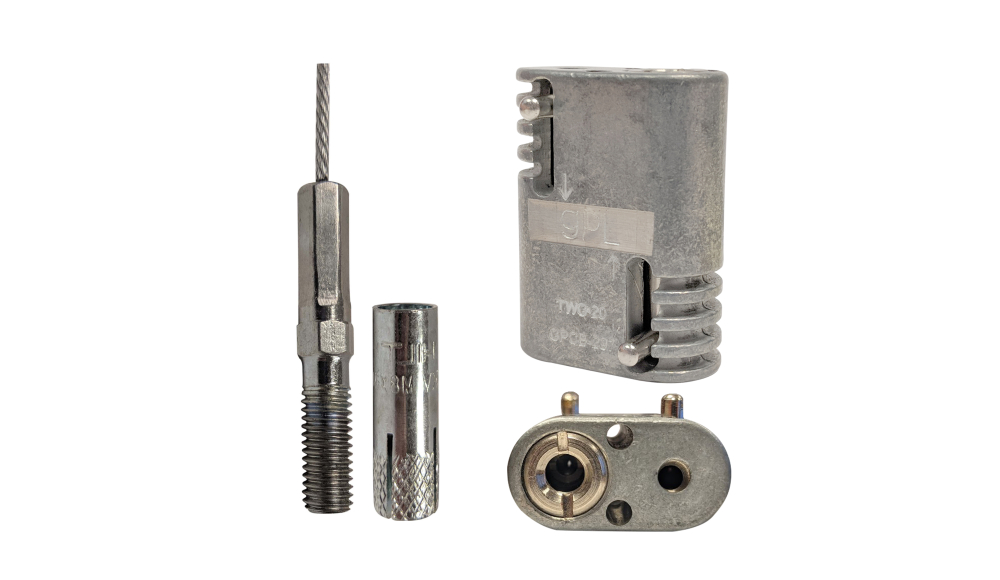

3MTR WIRE KIT WITH STUD TERMINATION, ANCHOR & GRIPPER

Function: Recommended for the suspension of HVAC, electrical and mechanical services. (For indoor & stationary setting).
Applications: Concrete ceilings, metal decking and pressed metal brackets (with nuts).
Technical Data:
• SMACNA compliance- all products carry a 5:1 safety factor
• Tested & Certified by TUV Nord.
• As per UL 1598, CSA C22.2 No.250.0-08
Material Specification:
Stud: MS-En1A White Zinc Wire Rope MS Galvanized IS228, (ASTM-D117) -2016, IS-6745-2011
Max Load: 280kg
SWL: 56Kg
Safety Factor 5:1

(Comes complete with drop-in anchor)
