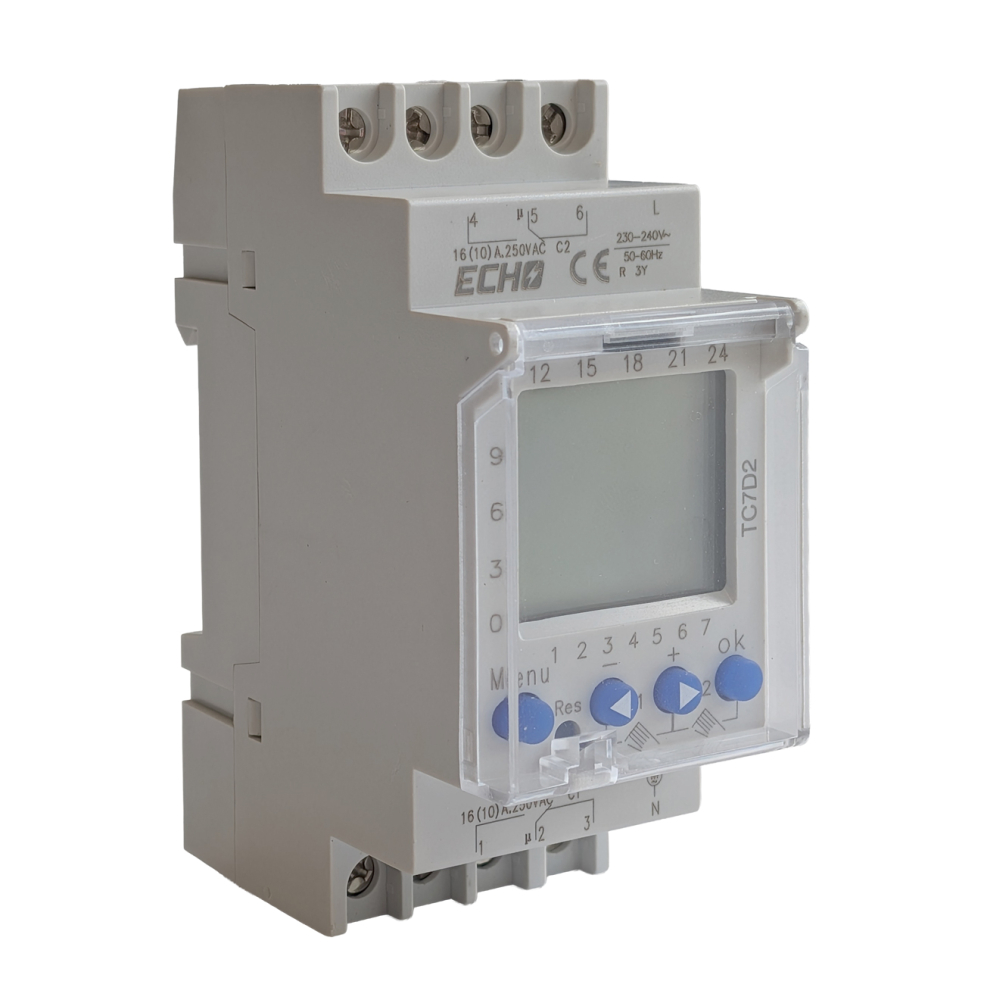

TC7D2 Time Clock 16A 1 Channel 7 Day + Battery
The 2-Channel 7-Day Timer is a versatile programmable timer designed for automated control of lighting, machines, ventilation, and other electrical systems. With dual channels and up to 96 memory locations, it allows for flexible scheduling, including daily, weekly, random, holiday, pulse, and cycle programs. Its intuitive LCD display and user-friendly interface make it ideal for both commercial and residential automation needs.
Operation and Safety Description
Operation of the timer is straightforward, featuring easy menu navigation via touch keys and a clear text LCD display. Users can program, view, amend, or delete switching times, and select from various modes such as manual, permanent, random, or holiday. For safety, installation and electrical connections must be performed by a qualified electrician. Unauthorized modifications void the warranty. The device includes a PIN code lock for security and complies with national safety regulations. Always read the display prompts and follow safety guidelines to ensure proper and safe operation.
Technical Specifications
- Rated voltage: 230-240V~ (+6%/-10%)
- Frequency: 50-60 Hz
- Shortest switching time: 1 minute
- Own consumption: max. 7.5 VA
- Switching power: 16A, 250V~ (cosφ=1); 10A, 250V~ (cosφ=0.6)
- Display: LCD with text line
- Power reserve: approx. 4 years (lithium battery)
- Operating controls: 4 touch keys, 1 reset key
- Incandescent/Halogen lamp load: 2300 W
- Timing base: quartz, precision ≤±1 sec./day at 20°C
- Ambient temperature: -10°C to +50°C
- Weight: approx. 140 g
- Degree of protection: IP20 (IEC/EN 60529)
