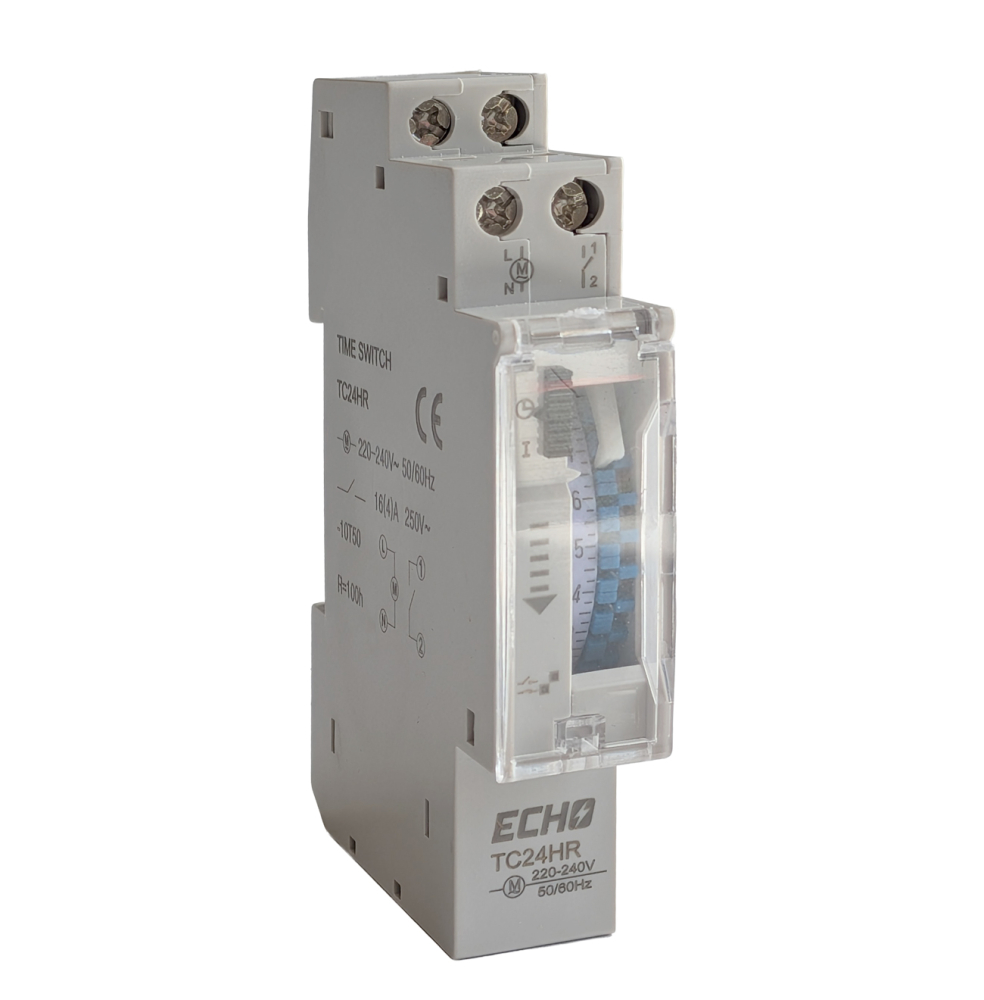

TC24HR - Time Clock 24 Hour 15 Min Segment 1Mod Battery.
This time switch is designed to control electrical installations through programmable daily schedules, enabling reliable and automated operation.

Installation and assembly must be carried out by a qualified electrician in accordance with applicable regulations. The device should be mounted in switchboard cabinets using a 25 mm symmetrical DIN rail compliant with EN 50022.

Operational Safety & Interference Protection

The time switch includes an internal safety mechanism to protect against electrical interference. However, strong electromagnetic fields may still affect its performance. To ensure optimal operation, follow these installation recommendations:

  • Avoid installing the device near inductive loads such as motors, transformers, or contactors.
  • Use a separate power supply line where possible; a network filter may be required in certain installations.
  • Fit inductive loads with interference suppression components (e.g., varistors or RC filters).

When using the time switch alongside other devices, ensure that no unwanted electrical interference (parasitic disturbances) is introduced within the system.


Technical Specifications

  • Auxiliary power supply: 220 ÷ 240V AC ±10%, 45/60 Hz
  • Switching contact: 16(4) A, 250V AC
  • Burden: 0.5 W
  • Precision: ± 3 sec/day at 22°C
  • Back-up time: 100 hours
  • Type of dial: Daily, 96 pins
  • Minimum setting interval: 15 minutes (daily)
  • Temperature:
    • Working: -10°C to +50°C
    • Storage: -25°C to +70°C
  • Manual operating switch: 2 positions – ON / Automatic
  • Movement: Quartz
  • Terminal wires: 2 × 2.5 mm²
  • Sealable front
  • Dimensions: 1 DIN
  • Protection degree: IP20 (as per EN 60529)
  • Protection class: II (as per EN 60335, under correct assembly conditions)
  • Standards: IEC 669-1; EN 60730
