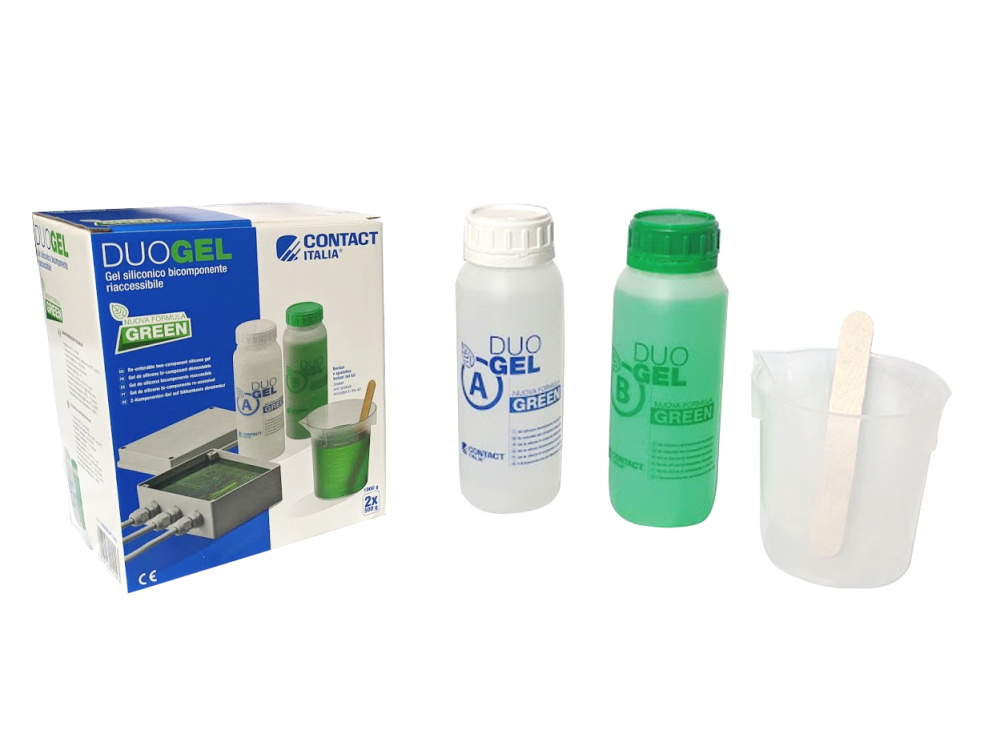

DUOGEL SILICONE GEL 500ML X 2 KIT

Pot life : 10 minutes. Cross-linking tme < 30 minutes. Mixing ratio in weight 1:1. Linear shrinkage after catalysis < 0.1. Viscosity component A:500 Mpa. Viscosity component B:500 Mpa. Storage temperature from 5° to 30°. Dielectric strength > 20kV/mm. Dielectric constant 2.85. Volume resistivity 5.60x1013cm. Thermal conductivity < 0.2 W/mK. Norms: CEI EN 60439-1 CEI EN 60529 Compliant to EC directive 67/548/EEC

DownloadsPlease see download section for Specification Sheet
