Wire Kit with Anchor Termination & Gripper 5m
Wire Kit with Anchor Termination & Gripper 5m

Wire Kit with Anchor Termination & Gripper 5m

Stock Code: ICWSA5

Please log in for prices

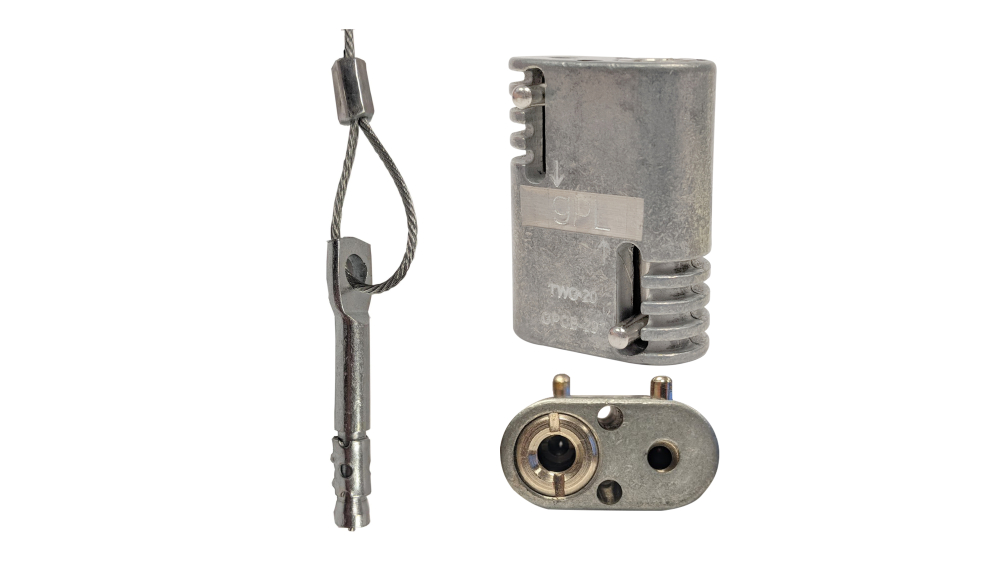

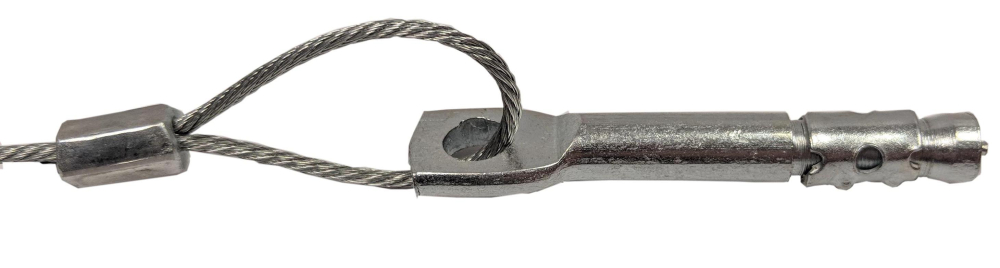

This 5m Wire Kit with Anchor Termination and Gripper is designed for the safe suspension of HVAC, electrical, and mechanical services in indoor settings. Suitable for both concrete and cracked concrete ceilings, it complies with SMACNA standards and meets UL 1598 and CSA C22.2 No.250.0-08 requirements. Tested and certified by TUV Nord, the kit is manufactured from MS-En1A with white zinc finish. With a maximum load of 280kg and a safe working load (SWL) of 56kg at a 5:1 safety factor, it delivers strength, reliability, and peace of mind.

Function: Recommended for suspension of HVAC, Electrical and Mechanical services (For indoor setting)
Applications: Concrete ceilings and cracked concrete ceilings
Technical Data:
• SMACNA compliance- all products carry a 5:1 safety factor
• As per UL 1598, CSA C22.2 No.250.0-08
• Tested & Certified by TUV Nord.
Material Specification:
MS-En1A with White Zinc
Max Load: 280kg
SWL: 56Kg
Safety Factor 5:1



DownloadsPlease See Download Section for Suspension Wire Kit Flyer

Click on any of the following links to download the file.
